When metal profiles, shelving systems, consoles, or various steel components need to be secured to concrete surfaces, choosing the right anchor is of great importance. One of the fasteners used by professionals in these applications is the wedge anchor.
A wedge anchor is a type of steel anchor that creates a mechanical bond within concrete thanks to its steel body and a clipping expansion mechanism that engages during installation.
It is possible to encounter wedge anchors in various sizes in applications such as metal profile installation, shelving systems, steel construction, and machinery and equipment fastening.
So, how exactly does a wedge anchor work, why is it frequently used in metal profile applications, and what are its differences from a sleeve anchor?
What is a Wedge Anchor?
A wedge anchor is a metal fastener used for mechanical anchoring in concrete and similar suitable solid surfaces.
The characteristic feature of the product is the clipping expansion mechanism on its body.
After the anchor is placed in a hole drilled to the appropriate diameter and depth, the anchoring mechanism engages when the nut is tightened. The clip section anchors mechanically into the concrete, helping to secure the connection.
Therefore, a wedge anchor is not just a bolt-nut connection; with the tightening process, the anchor creates a mechanical anchoring system that functions within the base material.
Wedge Anchor Working Mechanism Image: 1.0
How Does a Wedge Anchor Work?
The easiest way to understand the working principle of a wedge anchor is to look at its movement within the concrete.
In general, the installation process is as follows:
- A hole of the appropriate diameter and depth is drilled.
- Dust and debris inside the hole are cleaned.
- The wedge anchor is inserted into the hole.
- The metal profile, plate, or equipment to be secured is positioned.
- The nut is tightened appropriately.
- During the tightening process, the clip/expansion mechanism of the anchor engages, creating a mechanical bond within the concrete.
Proper preparation of the hole is especially important. The hole diameter, depth, and cleanliness must be considered for the anchor to function correctly.
What is the Advantage of the Clip Mechanism?
The main feature that distinguishes a wedge anchor from some other mechanical anchors is that the connection is created via the clipping expansion mechanism.
When the nut is tightened, the mechanism engages within the concrete, helping the anchor to grip the surface.
In the field, this mode of operation is sometimes referred to as "opening" or "gripping."
However, looking only at the mechanism is not enough when choosing a wedge anchor. The properties of the concrete, anchor diameter and length, installation depth, the thickness of the part to be fastened, and the performance expected from the connection must be evaluated together.
Where is a Wedge Anchor Used?
Steel wedge anchors can be used in various professional and industrial installations.
Its main areas of use are:
- Metal profile fastening
- Shelving systems (Includes shelving and warehouse storage systems that are not heavy-duty. A wedge anchor is not a safe way to secure heavy loads like a Sleeve Steel Anchor.)
- Warehouse racks
- Steel construction applications
- Machinery and equipment fastening
- Console and bracket installations
- Steel plate connections
- Railing and barrier applications
- Industrial facility installations
- Factory and workshop applications
It is observed that wedge anchors are used especially in applications where metal profiles and steel parts need to be secured to concrete surfaces.
Why is a Wedge Anchor Used in Metal Profile Installation?
Securing metal profiles to concrete surfaces is one of the applications where wedge anchors are frequently encountered.
The anchor, passed through the connection points on the profile, is placed into the hole in the concrete. When the nut is tightened, the clip mechanism engages, helping to create a mechanical connection between the profile and the concrete.
Therefore;
box profiles, steel profiles, consoles, angle irons, plates, and various metal support components are among the solutions where wedge anchors can be preferred for fastening to concrete surfaces.
However, there is no single correct product in the field.
Depending on the installer's habit, project requirements, the base material, and the part to be fastened, a sleeve steel anchor might also be preferred.
Wedge Anchor Application on Box Profile Image: 2.0
What is the Difference Between a Wedge Anchor and a Sleeve Anchor?
Although there are applications where a wedge anchor and a sleeve steel anchor can be considered as alternatives to each other, the mechanical structure of the two products is not the same.

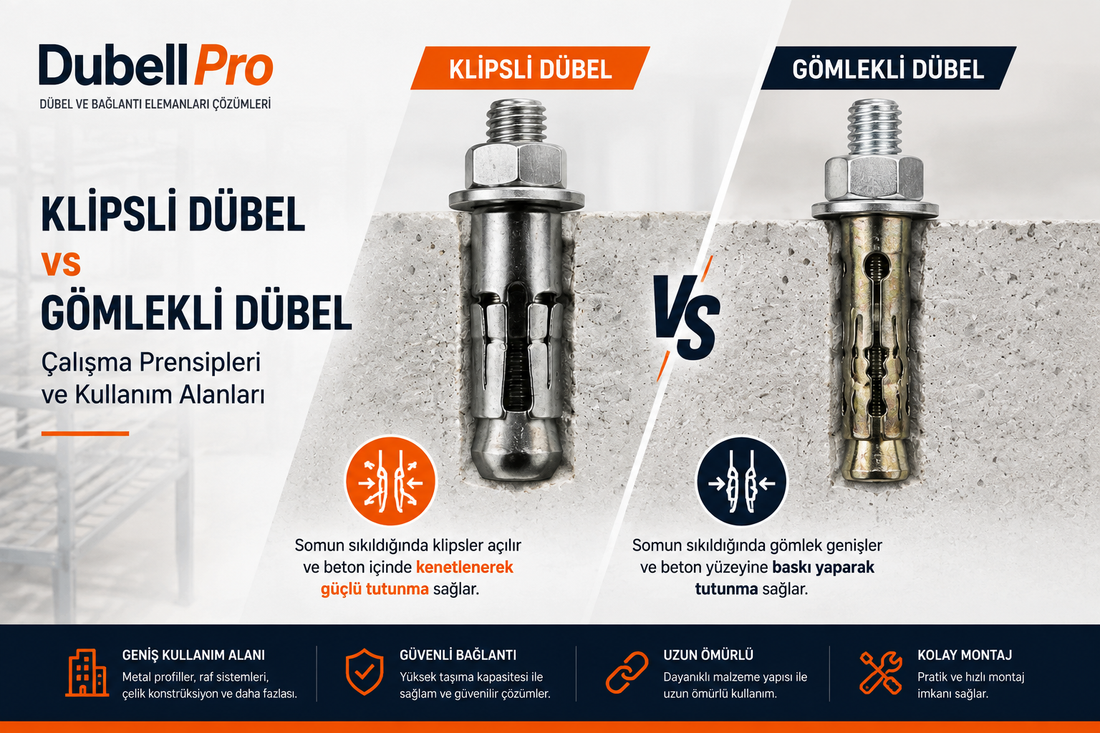

Wedge Anchor vs. Sleeve Steel Anchor Difference Visualization Image: 3.0
Wedge Anchor
In a wedge anchor, the characteristic element of the connection is the clip/expansion zone. By tightening the nut, this section engages and creates a mechanical bond within the concrete.
It can be used especially in metal profile, steel construction, shelving, and various industrial installations.
Sleeve Steel Anchor
In a sleeve anchor, the metal sleeve surrounding the anchor body is one of the important parts of the system. During installation, the sleeve mechanism expands to create a grip within the base material.
We covered this system in detail in the guide we previously prepared at Dubell Pro titled What is a Sleeve Anchor? Usage Areas and Advantages.
Which One Should I Choose?
It is not accurate to make a generalization here like "a wedge anchor is always better" or "a sleeve anchor is better."
The choice should be made according to;
base material, load, connection point, installation depth, structure of the part to be fastened, and manufacturer/project requirements.
While some masters in the field prefer sleeve anchors due to their habitual installation methods, wedge anchors may be a more common choice in some applications.
The important thing is to choose the anchor suitable for the application rather than relying on habit.
How to Choose Wedge Anchor Size?
When choosing a wedge anchor, not only the diameter should be considered.
For example, while expressions like M8, M10, M12, or M16 provide information about the anchor diameter, the second measure indicates the length of the anchor.
In the example of an M10x110 wedge anchor:
M10: nominal diameter
110: anchor length
it means.
However, the thickness of the part to be fastened, the base material, installation depth, and connection requirements must be considered when determining the correct size.
At Dubell Pro, wedge anchors are offered with many different size options, including M8x75, M8x100, M10x90, M10x110, M10x120, M12x90, and M12x110.
What Should be Considered During Wedge Anchor Installation?
Performing a correct installation is as important as using a good anchor.
Particular attention should be paid to the following points:
Correct drill bit diameter: A hole suitable for the anchor used must be drilled.
Correct hole depth: The required installation depth must be ensured for the anchor to work.
Hole cleaning: Concrete dust and debris generated after drilling must be cleaned.
Correct size: The anchor diameter and length should be determined according to the application.
Correct tightening: If applicable, the installation and tightening values specified by the manufacturer should be followed.
In applications critical in terms of load-bearing capacity or safety, the technical data and project requirements of the relevant product must be taken as a basis.
What Should be Considered When Buying a Wedge Anchor?
When buying a wedge anchor, it may not be accurate to evaluate based solely on the unit price.
Especially for professional users and businesses;
the product size, the surface it will be used on, installation type, quantity required, the possibility of regular supply, and application requirements should be evaluated together.
It is also important for businesses working on mass production or project-based work to be able to supply the right product consistently at the same standard.
Wedge Anchor Types at Dubell Pro
As Dubell Pro, we offer wedge steel anchor options in different sizes for professional users, installation firms, shelving system manufacturers, metal processing, and industrial businesses.
You can examine different diameter and length options in our wedge anchor product group, order directly in standard packages, or get a special price quote for your high-volume needs. Currently, 20 different products are listed in Dubell Pro's wedge anchor collection.
Do you need a large quantity of wedge anchors?
You can request a bulk purchase price from Dubell Pro by providing the size and quantity you will use in your project.
Frequently Asked Questions About Wedge Anchors
What is a wedge anchor?
A wedge anchor is a type of steel anchor used for mechanical fastening in suitable solid base materials such as concrete. By tightening the nut, the clip/expansion mechanism engages and creates a mechanical bond within the hole.
Where is a wedge anchor used?
It can be used in metal profile, shelving system, steel construction, console, machinery, equipment, and various industrial installation applications.
Is a wedge anchor used on a metal profile?
Yes. Securing metal profiles and various steel parts to concrete surfaces is one of the usage areas for wedge anchors. Here, the anchor creates an anchorage to the base material through the metal profile, not to the metal profile itself.
Wedge anchor or sleeve anchor?
Both products can be used in different professional fastening applications. The correct choice should be made according to the base material, load, installation method, anchor size, and project requirements.
Is a wedge anchor used in concrete?
Yes. One of the main areas of use for steel wedge anchors is mechanical anchoring applications made to concrete surfaces.
How to choose wedge anchor size?
The diameter and length of the anchor should be determined according to the thickness of the part to be fastened, the base material, the required anchorage depth, and the technical requirements of the connection.
